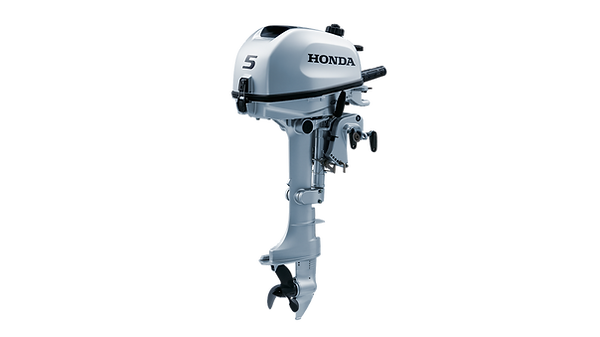

BF4-6 SPECIFICATION SHEET

  • BF4 SHNU

  • Engine

  • Engine Type OHV - 1 cylinder

  • Valves 2 valves

  • Displacement (cc) 127

  • Bore X Stroke (mm) 60 x 45

  • Full Throttle Range (RPM) 4,500 - 5,500

  • Rated Power (kW (PS)) 2.9

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery1 carburettor

  • Ignition System Digital CDI

  • Starting System Recoil starter

  • Exhaust System In water

  • Gear Ratio2.08

  • Propeller Rotation Standard

  • Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

  • Dimensions

  • Transom Height (mm)434

  • Dry Weight (kg)27

  • Overall Length (mm)524

  • Overall Width (mm)347

  • Overall Height (mm)1020

  • BF4 LHNU

  • Feature

  • Engine

  • Engine Type OHV - 1 cylinder

  • Valves2 valves

  • Displacement (cc) 127

  • Bore X Stroke (mm) 60 x 45

  • Full Throttle Range (RPM) 4,500 - 5,500

  • Rated Power (kW (PS)) 2.9

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery1 carburettor

  • Ignition System Digital CDI

  • Starting System Recoil starter

  • Exhaust System In water

  • Gear Ratio2.08

  • Propeller Rotation Standard

  • Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

  • Dimensions

  • Transom Height (mm) 561

  • Dry Weight (kg) 27.5

  • Overall Length (mm) 524

  • Overall Width (mm) 347

  • Overall Height (mm) 1147

  • BF5 SHNU

  • Feature

  • Engine

    Engine Type OHV - 1 cylinder

    Valves 2 valves

    Displacement (cc) 127

    Bore X Stroke (mm) 60 x 45

    Full Throttle Range (RPM) 4,500 - 5,500

    Rated Power (kW (PS)) 3.7

    Cooling System Water Cooled (with Thermostat)

    Fuel Delivery 1 carburettor

    Ignition System Digital CDI

    Starting System Recoil starter

    Exhaust System In water

    Gear Ratio 2.08

    Propeller Rotation Standard

    Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

    Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

    Transom Height (mm) 434

    Dry Weight (kg) 27

    Overall Length (mm) 524

    Overall Width (mm) 347

    Overall Height (mm) 1020

  • BF5 LHNU

  • Feature

  • Engine

    Engine Type OHV - 1 cylinder

    Valves2 valves

    Displacement (cc) 127

    Bore X Stroke (mm) 60 x 45

    Full Throttle Range (RPM) 4,500 - 5,500

    Rated Power (kW (PS)) 3.7

    Cooling System Water Cooled (with Thermostat)

    Fuel Delivery 1 carburettor

    Ignition System Digital CDI

    Starting System Recoil starter

    Exhaust System In water

    Gear Ratio 2.08

    Propeller RotationStandard

    Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

    Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

    Transom Height (mm) 561

    Dry Weight (kg) 27.5

    Overall Length (mm) 524

    Overall Width (mm) 347

    Overall Height (mm) 1147

  • BF5 SHU

  • Feature

  • Engine

    Engine Type OHV - 1 cylinder

    Valves 2 valves

    Displacement (cc) 127

    Bore X Stroke (mm) 60 x 45

    Full Throttle Range (RPM) 4,500 - 5,500

    Rated Power (kW (PS)) 3.7

    Cooling System Water Cooled (with Thermostat)

    Fuel Delivery 1 carburettor

    Ignition System Digital CDI

    Starting System Recoil starter

    Exhaust System In water

    Gear Ratio 2.08

    Propeller Rotation Standard

    Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

    Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

    Transom Height (mm) 434

    Dry Weight (kg) 27

    Overall Length (mm) 524

    Overall Width (mm) 347

    Overall Height (mm) 1020

​

  • BF5 LHU

  • Feature

  • Engine

    Engine Type OHV - 1 cylinder

    Valves 2 valves

    Displacement (cc) 127

    Bore X Stroke (mm) 60 x 45

    Full Throttle Range (RPM) 4,500 - 5,500

    Rated Power (kW (PS)) 3.7

    Cooling System Water Cooled (with Thermostat)

    Fuel Delivery 1 carburettor

    Ignition System Digital CDI

    Starting System Recoil starter

    Exhaust System In water

    Gear Ratio 2.08

    Propeller Rotation Standard

    Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

    Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

    Transom Height (mm) 561

    Dry Weight (kg) 27.5

    Overall Length (mm) 524

    Overall Width (mm) 347

    Overall Height (mm) 1147

  • BF6 SHNU

  • Feature

  • Engine

    Engine Type OHV - 1  cylinder

    Valves 2 valves

    Displacement (cc) 127

    Bore X Stroke (mm) 60 x 45

    Full Throttle Range (RPM) 5,000 - 6,000

    Rated Power (kW (PS)) 4.4

    Cooling System Water Cooled (with Thermostat)

    Fuel Delivery 1 carburettor

    Ignition System Digital CDI

    Starting System Recoil starter

    Exhaust System In water

    Gear Ratio 2.08

    Propeller Rotation Standard

    Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

    Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

    Transom Height (mm) 434

    Dry Weight (kg) 27

    Overall Length (mm) 524

    Overall Width (mm) 347

    Overall Height (mm) 1020

  • BF6 LHNU

  • Engine

  • Engine Type OHV - 1 cylinder

  • Valves 2 valves

  • Displacement (cc) 127

  • Bore X Stroke (mm) 60 x 45

  • Full Throttle Range (RPM) 5,000 - 6,000

  • Rated Power (kW (PS)) 4.4

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery1 carburettor

  • Ignition System Digital CDI

  • Starting System Recoil starter

  • Exhaust System In water

  • Gear Ratio 2.08

  • Propeller Rotation Standard

  • Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

  • Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

  • Transom Height (mm) 561

  • Dry Weight (kg) 27.5

  • Overall Length (mm) 524

  • Overall Width (mm) 347

  • Overall Height (mm) 1147

  • BF6 SHU

  • Feature

  • Engine

  • Engine Type OHV - 1 cylinder

  • Valves 2 valves

  • Displacement (cc) 127

  • Bore X Stroke (mm) 60 x 45

  • Full Throttle Range (RPM) 5,000 - 6,000

  • Rated Power (kW (PS)) 4.4

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery 1 carburettor

  • Ignition System Digital CDI

  • Starting System Recoil starter

  • Exhaust System In water

  • Gear Ratio 2.08

  • Propeller Rotation Standard

  • Engine Trim and TiltManual Tilt - 5 stages

  • Function

  • Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

  • Transom Height (mm) 434

  • Dry Weight (kg )27

  • Overall Length (mm) 524

  • Overall Width (mm) 347

  • Overall Height (mm) 1020

  • BF6 LHU

  • Feature

  • Engine

  • Engine Type OHV - 1 cylinder

  • Valves2 valves

  • Displacement (cc) 127

  • Bore X Stroke (mm) 60 x 45

  • Full Throttle Range (RPM) 5,000 - 6,000

  • Rated Power (kW (PS)) 4.4

  • Cooling System Water Cooled (with Thermostat)

  • Fuel Delivery 1 carburettor

  • Ignition System Digital CDI

  • Starting System Recoil starter

  • Exhaust System In water

  • Gear Ratio 2.08

  • Propeller Rotation Standard

  • Engine Trim and Tilt Manual Tilt - 5 stages

  • Function

  • Battery Charging Capacity (AMP.) 12V6A

  • Dimensions

  • Transom Height (mm) 561

  • Dry Weight (kg) 27.5

  • Overall Length (mm) 524

  • Overall Width (mm) 347

  • Overall Height (mm) 1147
